Project Overview
Client
St. Anthony of Padua Church
Location
2530 Victory Parkway
Cincinnati, Ohio
Project Type
Retaining Wall System
Key Features
7-9 ft walls, ADA ramp, New stairs
Project Visualization
PROOF
PROOF
3D Rendering - Complete System View
PROOF
PROOF
Technical Drawing with Dimensions
PROOF
PROOF

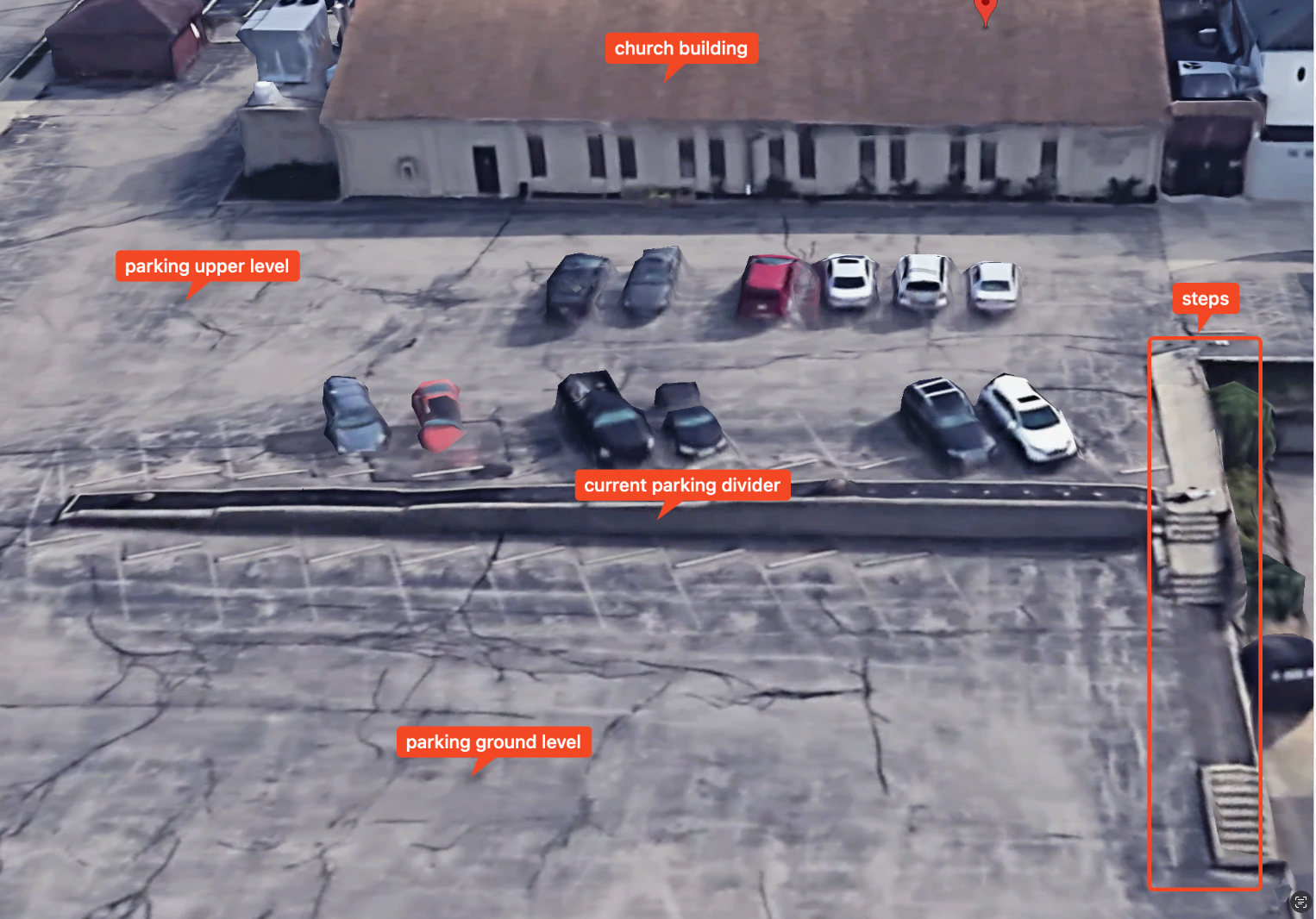

Site Analysis - Parking Levels
PROOF
PROOF
Site Plan with Proposed Improvements
PROOF
PROOF

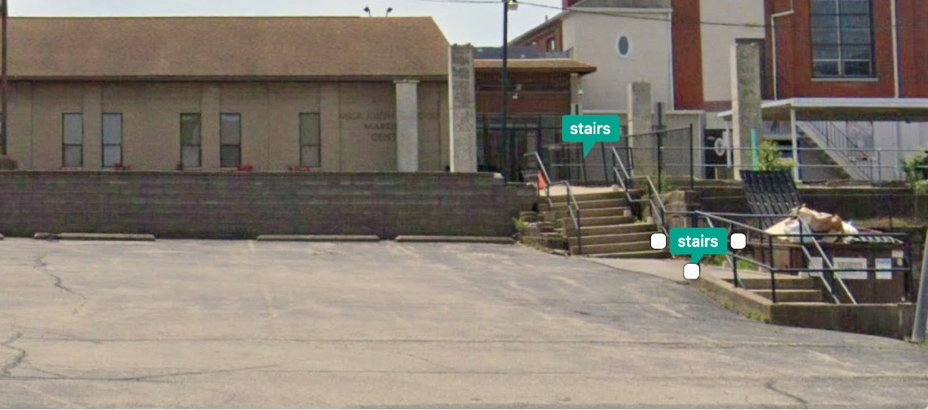

Existing Site Conditions
PROOF
PROOF

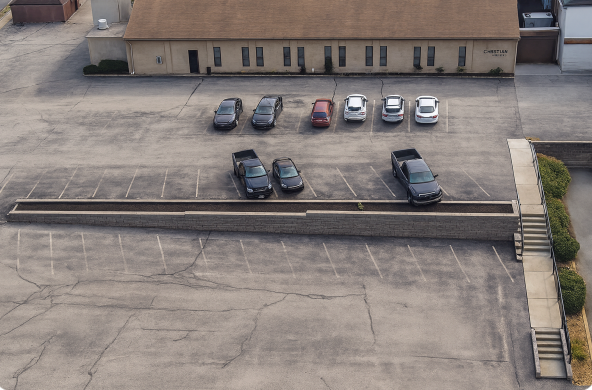

Aerial Overview - Current State
Project Features
- Two-tier retaining wall system (7' and 9' heights)
- ADA-compliant ramp with safety handrails
- New concrete staircase connecting parking levels
- 5-foot wide walkway along retaining wall
- Textured concrete masonry units (CMU)
- Integrated drainage system
- Architectural lighting for safety
- Landscaping along wall base
